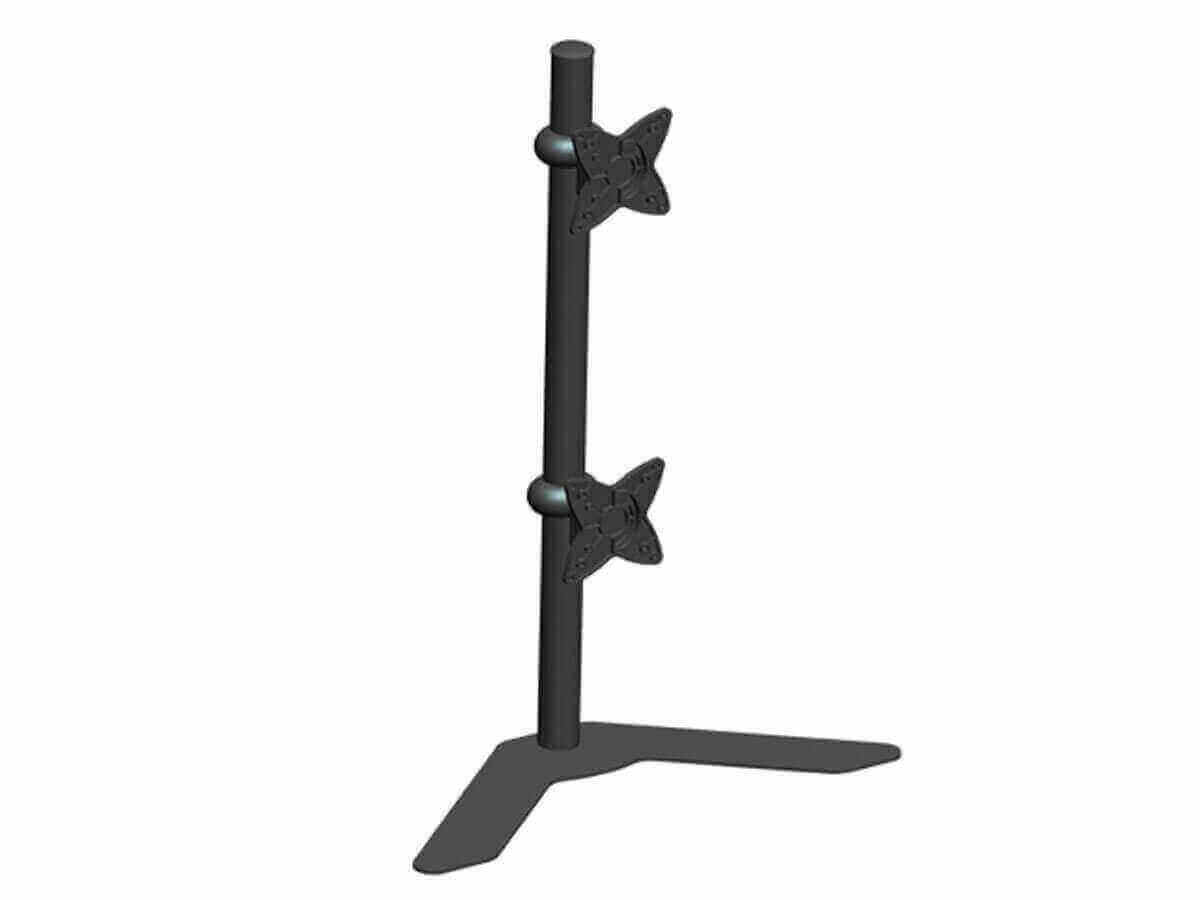

Adjustable Tilting DUAL Desk Mount Bracket for LCD LED (Max 33Lbs, 10~23inch) - Black
Adjustable Tilting DUAL Desk Mount Bracket for LCD LED (Max 33Lbs, 10~23inch) - Black
Couldn't load pickup availability
Free space on your desk and gain improved ergonomics by using this Adjustable Tilting Monitor Desk Mount Bracket from Monoprice!
Using a desk mount bracket provides additional desk space by moving the monitor above the desk. It allows you to position your monitor at eye level which reduces neck/back strain and pain from lengthy sessions in front of the computer.
This mount attaches to the edge of a desk table or other horizontal surface with a wide V shaped base which provides maximum stability. Two monitors can be attached to the mount one above the other. The monitors can be tilted and rotated allowing for easy conversion between landscape and portrait mode. It fits two monitors weighing up to 33 lbs. each with either 75x75 or 100x100 VESA mounting patterns.
Features:
- Fits monitors with VESA 75x75 and 100x100 mounting patterns
- Tilts ±30 degrees
- Rotates 360 degrees allowing for easy portrait or landscape orientation
- Steel construction with aluminum VESA plate
- Height adjustable to about 25.2"
Support Files:
- User's Manual (Aug 30 2011)
- Dimensions Diagram (Feb 15 2011)
| Specifications | |
|---|---|
| Model # | 5561 |
| Type | Desk Mount |
| Minimum VESA | 75 x 75 |
| Maximum VESA | 100 x 100 |
| Maximum Weight | 33 lbs/display |
| Minimum Display Size | 10" |
| Maximum Display Size | 23" |
| Minimum Extension | N/A |
| Maximum Extension | 14.2" |
| Maximum Height | 17.7" |
| Tilt Range | ±30 degrees |
| Swivel Range | ±90 degrees |
| Rotation Range | 360 degrees |
| Construction | Steel and Aluminum |
| Color | Black |
| Wall Plate Dimensions | N/A |
| Front Plate Dimensions | 4.5" x 4.5" |
| Built In Level | No |
| Cable Management | Yes |
| UL Certified | No |
| RoHS Compliant | Yes |
| Notes: | |
